Cervélo

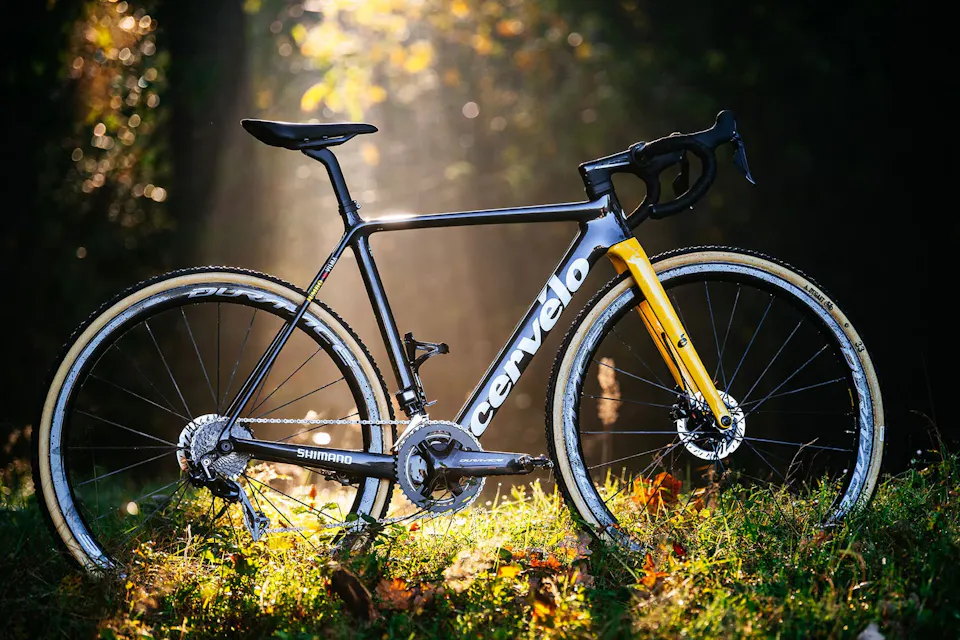

A cyclocross frameset in 4 sizes, from 51 to 58.
Frameset price, size 54
$7,350
aggressive · snappy handling
From Cervélo’s own numbers for the 54, not marketing copy.
aggressive · snappy handling
From your saved height and inseam, not a height range.
Every size, straight from Cervélo’s chart. Blanks are numbers Cervélo doesn’t publish; we don’t fill them in.
| Measurement | ||||
|---|---|---|---|---|
| Stack (mm) | 520 | 540 | 560 | 580 |
| Reach (mm) | 371 | 380 | 389 | 398 |
| Stack / Reach | 1.40 | 1.42 | 1.44 | 1.46 |
| Head tube angle (°) | 71.5 | 71.5 | 71.5 | 72 |
| Seat tube angle (effective) (°) | 74.5 | 74 | 73.5 | 73 |
| Top tube (effective) (mm) | 517 | 536 | 556 | 574 |
| Chainstay (mm) | 425 | 425 | 425 | 425 |
| Wheelbase (mm) | 998 | 1014 | 1029 | 1037 |
| Trail (mm) | 58.7 | 58.7 | 58.7 | 58.7 |
| Standover (mm) | 775 | 789 | 803 | 820 |
Cervélo’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| 51 | 1700 | $7,350 |
| 54 | 1700 | $7,350 |
| 56 | 1700 | $7,350 |
| 58 | 1700 | $7,350 |
Cervélo · road / aero — Values match Cervélo retailer assembly manuals (S5 / Soloist family). Apply carbon assembly compound at the seatpost.
| Torque(Nm) |
|---|
| Torque(in·lb) |
|---|
| Tool |
|---|
| Seatpost wedge clampRounded-front wedge; grease wedge sliding surfaces. | 8 | 70.8 | Hex |
|---|---|---|---|
| Cervélo aero thru-axle | 12–15 | 106.2–132.8 | 6 mm hex / removable handle |
| Cervélo aero thru-axle | 12–15 | 106.2–132.8 | 6 mm hex / removable handle |
| Bottle cage | 2–3 | 17.7–26.6 | 4 mm hex |
| UDH / Derailleur Hanger v2Hanger fixing screw; left-hand thread on some Cervélo hangers. | 25 | 221.3 | Hex |
Straight from Cervélo’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
