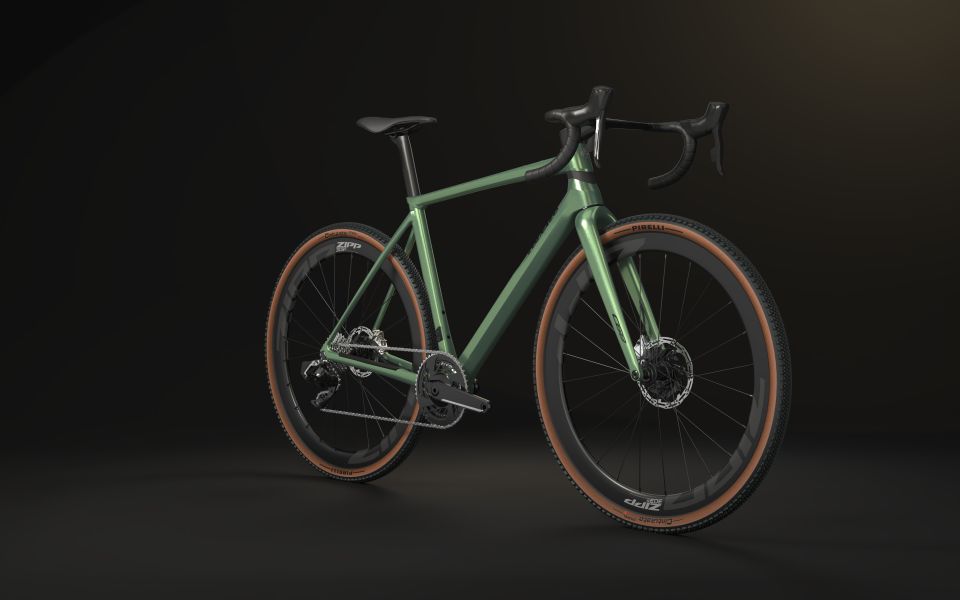

Colnago
A gravel frameset in 5 sizes, from 450 to 570.
Frameset price, size 510
$9,248
sport · stable handling
From Colnago’s own numbers for the 510, not marketing copy.
sport · stable handling
From your saved height and inseam, not a height range.
Every size, straight from Colnago’s chart. Blanks are numbers Colnago doesn’t publish; we don’t fill them in.
| Measurement | |||||
|---|---|---|---|---|---|
| Stack (mm) | 541 | 555 | 580 | 605 | 630 |
| Reach (mm) | 375 | 386 | 397 | 408 | 419 |
| Stack / Reach | 1.44 | 1.44 | 1.46 | 1.48 | 1.50 |
| Head tube angle (°) | 75 | 70.5 | 70.5 | 70.5 | 70.5 |
| Seat tube angle (effective) (°) | 75 | 74 | 73.5 | 73.2 | 73 |
| Top tube (effective) (mm) | 520 | 545 | 569 | 590 | 600 |
| Chainstay (mm) | 425 | 425 | 425 | 425 | 425 |
| Wheelbase (mm) | 1010.5 | 1026 | 1046.7 | 1066.9 | 1074.9 |
| Trail (mm) | Not published | Not published | Not published | Not published | Not published |
| Standover (mm) | Not published | Not published | Not published | Not published | Not published |
Colnago’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| 450 | 1615 | $9,248 |
| 480 | 1615 | $9,248 |
| 510 | 1615 | $9,248 |
| 540 | 1615 | $9,248 |
| 570 | 1615 | $9,248 |
Colnago hasn’t published frame bolt torques we can point to yet
