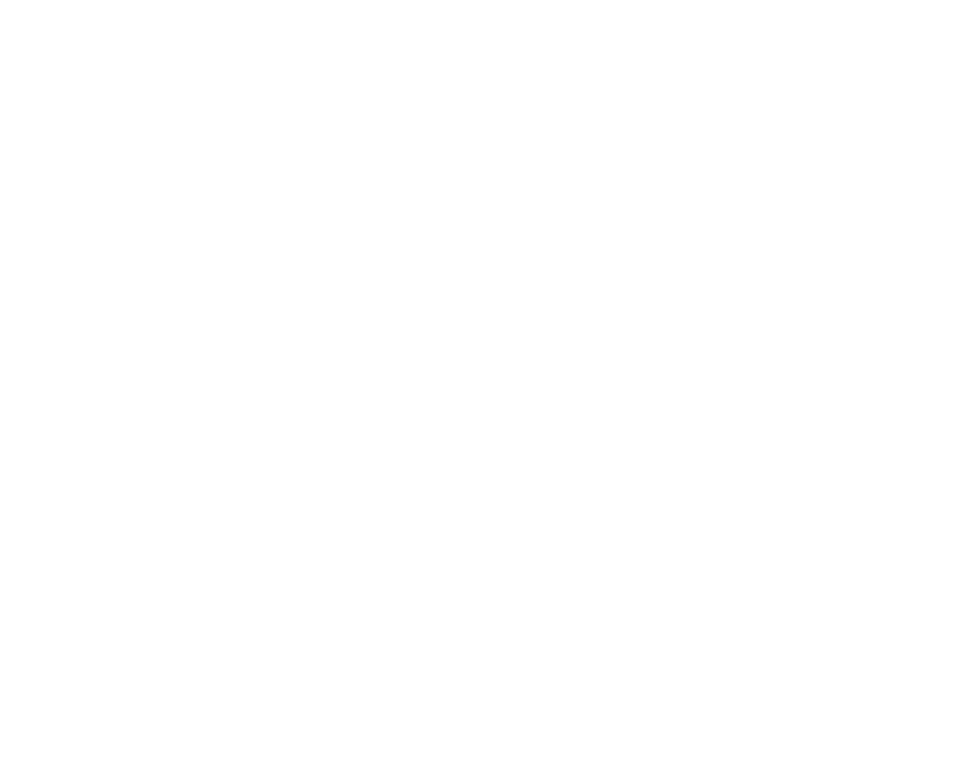

Colnago
A road frameset in 7 sizes, from 420 to 570.
Frameset price, size 485
$7,535
aggressive · forward-biased · stable handling
From Colnago’s own numbers for the 485, not marketing copy.
aggressive · forward-biased · stable handling
From your saved height and inseam, not a height range.
Every size, straight from Colnago’s chart. Blanks are numbers Colnago doesn’t publish; we don’t fill them in.
| Measurement | |||||||
|---|---|---|---|---|---|---|---|
| Stack (mm) | 510 | 522 | 539 | Not published | 575 | 593 | 612 |
| Reach (mm) | 370 | 375 | 383 | 388 | 395 | 403 | 410 |
| Stack / Reach | 1.38 | 1.39 | 1.41 | Not published | 1.46 | 1.47 | 1.49 |
| Head tube angle (°) | 70.6 | 71 | 71.5 | 71.8 | 72.5 | 72.9 | 73.1 |
| Seat tube angle (effective) (°) | 75.5 | 75 | 74.5 | 74 | 73.5 | 73 | 73 |
| Top tube (effective) (mm) | 504 | 517 | 535 | Not published | 567 | 586 | 599 |
| Chainstay (mm) | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
| Wheelbase (mm) | 973.1 | 979.1 | 988.2 | 994.2 | 996.3 | 1005.3 | 1016.4 |
| Trail (mm) | Not published | Not published | Not published | Not published | Not published | Not published | Not published |
| Standover (mm) | Not published | Not published | Not published | Not published | Not published | Not published | Not published |
Colnago’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| 420 | 1173 | $7,535 |
| 455 | 1173 | $7,535 |
| 485 | 1173 | $7,535 |
| 510 (XL) | 1173 | $7,535 |
| 530 | 1173 | $7,535 |
| 550 | 1173 | $7,535 |
| 570 | 1173 | $7,535 |
Colnago · V5Rs / Y1Rs family — From Colnago mounting support manuals (V5Rs / Y1Rs).
| Bolt | Torque(Nm) | Torque(in·lb) | Tool |
|---|---|---|---|
| Seatpost clamp bolt | 7 | 62 | 4 mm hex |
| Wheel thru-axle | 10 | 88.5 | 5–6 mm hex |
| Wheel thru-axle (UDH) | 10 | 88.5 | 6 mm hex |
| Bottle cage | 2.5 | 22.1 | 4 mm hex |
| UDH hanger | 25 | 221.3 | 8 mm hex |
Straight from Colnago’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
