Giant

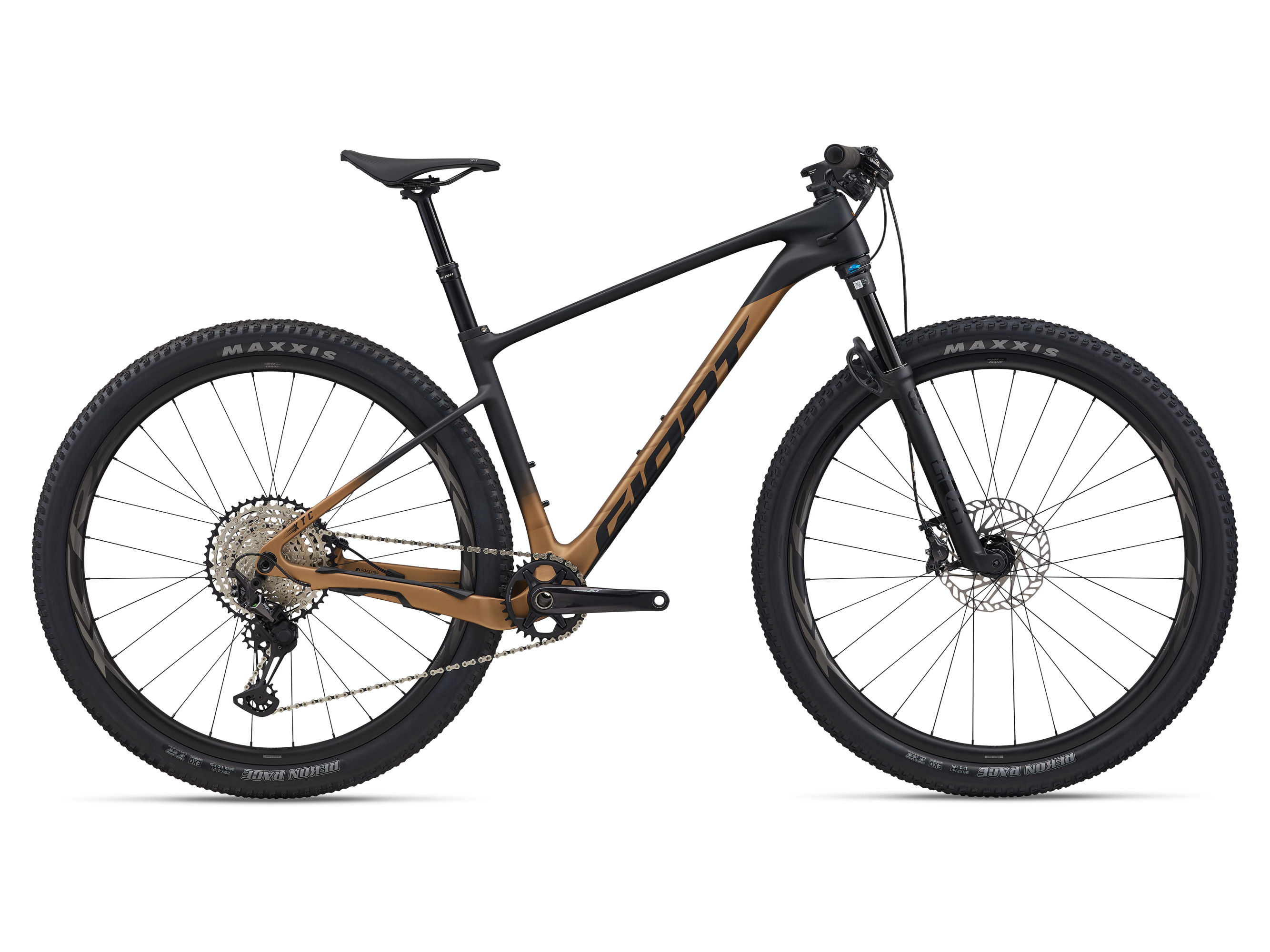

A cross-country mountain bike frameset in 4 sizes, from S to XL.
Frameset price, size M
$2,260
sport · rear-biased · snappy handling
From Giant’s own numbers for the M, not marketing copy.
sport · rear-biased · snappy handling
From your saved height and inseam, not a height range.
Every size, straight from Giant’s chart. Blanks are numbers Giant doesn’t publish; we don’t fill them in.
| Measurement | ||||
|---|---|---|---|---|
| Stack (mm) | 604 | 604 | 613 | 632 |
| Reach (mm) | 416 | 435 | 453 | 477 |
| Stack / Reach | 1.45 | 1.39 | 1.35 | 1.32 |
| Head tube angle (°) | 69.5 | 69.5 | 70 | 70 |
| Seat tube angle (effective) (°) | 73.5 | 73.5 | 73.5 | 73.5 |
| Top tube (effective) (mm) | 595 | 614 | 635 | 665 |
| Chainstay (mm) | 425 | 425 | 425 | 425 |
| Wheelbase (mm) | 1087 | 1106 | 1128 | 1159 |
| Trail (mm) | 95 | 95 | 95 | 95 |
| Standover (mm) | 737 | 764 | 791 | 829 |
Giant’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| S | 995 | $2,260 |
| M | 995 | $2,260 |
| L | 995 | $2,260 |
| XL | 995 | $2,260 |
Giant · disc road / gravel (thru-axle) — Giant MY20 technical manual lists 11 Nm for Giant disc thru-axles used across TCR / Defy / Propel / Revolt families. Seatpost clamp torque is printed on the clamp — follow that.
| Bolt | Torque(Nm) | Torque(in·lb) | Tool |
|---|
| Giant thru-axle (front) | 11 | 97.4 | Hex |
|---|---|---|---|
| Giant thru-axle (rear) | 11 | 97.4 | Hex |
| Bottle cage (owner manual)From Giant owner-manual fastener appendix (M5). | 2.9–4.9 | 25.7–43.4 | 4 mm hex |
Straight from Giant’s own chart, read Jul 24, 2026. Anything printed on the part itself always wins.
