Trek

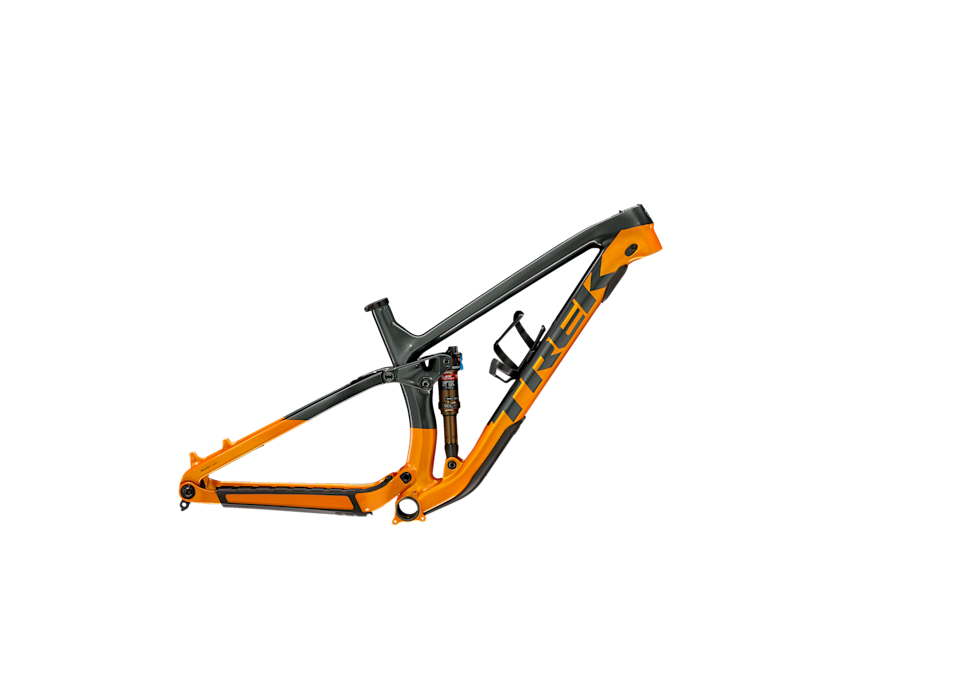

A trail mountain bike frameset in 5 sizes, from 15.5in to 23in(XXL).
Frameset price, size 19.5in
$4,110
sport · forward-biased · stable handling
From Trek’s own numbers for the 19.5in, not marketing copy.
sport · forward-biased · stable handling
From your saved height and inseam, not a height range.
Every size, straight from Trek’s chart. Blanks are numbers Trek doesn’t publish; we don’t fill them in.
| Measurement | |||||
|---|---|---|---|---|---|
| Stack (mm) | 619 | 633 | 647 | 661 | 674 |
| Reach (mm) | 418 | 448 | 473 | 498 | 518 |
| Stack / Reach | 1.48 | 1.41 | 1.37 | 1.33 | 1.30 |
| Head tube angle (°) | 63.4 | 63.4 | 63.4 | 63.4 | 63.4 |
| Seat tube angle (effective) (°) | 77.5 | 77.2 | 76.4 | 75.9 | 75.4 |
| Top tube (effective) (mm) | 552 | 586 | 621 | 655 | 684 |
| Chainstay (mm) | 437 | 437 | 442 | 447 | 452 |
| Wheelbase (mm) | 1200 | 1237 | 1273 | 1310 | 1341 |
| Trail (mm) | 138 | 138 | 137 | 137 | 137 |
| Standover (mm) | 750 | 752 | 759 | 765 | 773 |
Trek’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| 15.5in | 3310 | $4,110 |
| 17.5in | 3310 | $4,110 |
| 19.5in | 3310 | $4,110 |
| 21.5in | 3310 | $4,110 |
| 23in(XXL) | 3310 | $4,110 |
Shopping links may earn us a commission at no extra cost to you. The geometry always comes from the maker, never from a shop.
