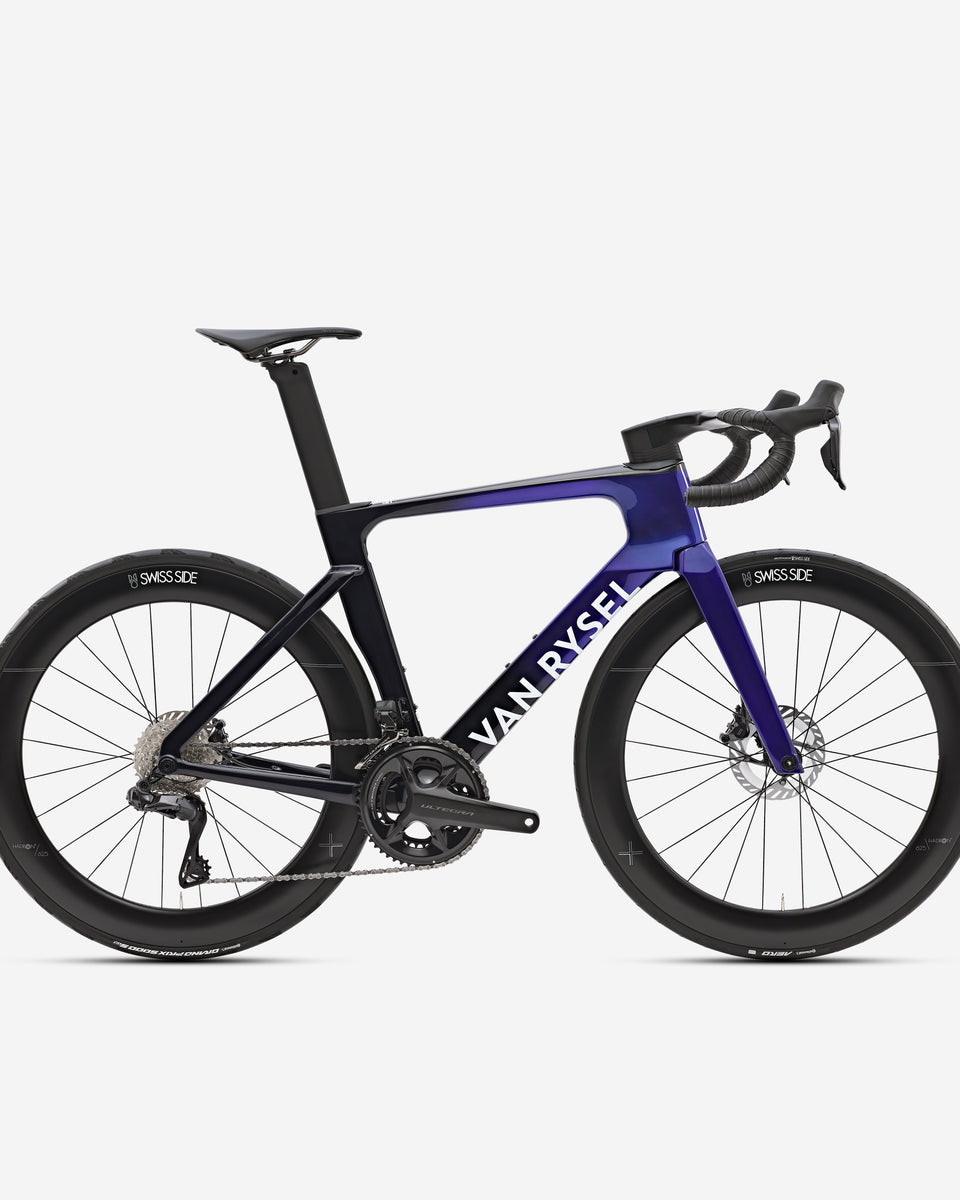

Van Rysel
A road frameset in 5 sizes, from XS to XL.
Frameset price, size M
$5,890
aggressive · neutral handling
From Van Rysel’s own numbers for the M, not marketing copy.
aggressive · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Van Rysel’s chart. Blanks are numbers Van Rysel doesn’t publish; we don’t fill them in.
| Measurement | |||||
|---|---|---|---|---|---|
| Stack (mm) | 504 | 520 | 535 | 561 | 585 |
| Reach (mm) | 386 | 389 | 392 | 399 | 412 |
| Stack / Reach | 1.31 | 1.34 | 1.36 | 1.41 | 1.42 |
| Head tube angle (°) | 72 | 73 | 73 | 73 | 73 |
| Seat tube angle (effective) (°) | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Top tube (effective) (mm) | 531 | 540 | 552 | 566 | 587 |
| Chainstay (mm) | 410 | 410 | 410 | 410 | 410 |
| Wheelbase (mm) | 978 | 979 | 986 | 1002 | 1022 |
| Trail (mm) | Not published | Not published | Not published | Not published | Not published |
| Standover (mm) | Not published | Not published | Not published | Not published | Not published |
Van Rysel’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| XS | 1630 | $5,890 |
| S | 1630 | $5,890 |
| M | 1630 | $5,890 |
| L | 1630 | $5,890 |
| XL | 1630 | $5,890 |
Van Rysel hasn’t published frame bolt torques we can point to yet
