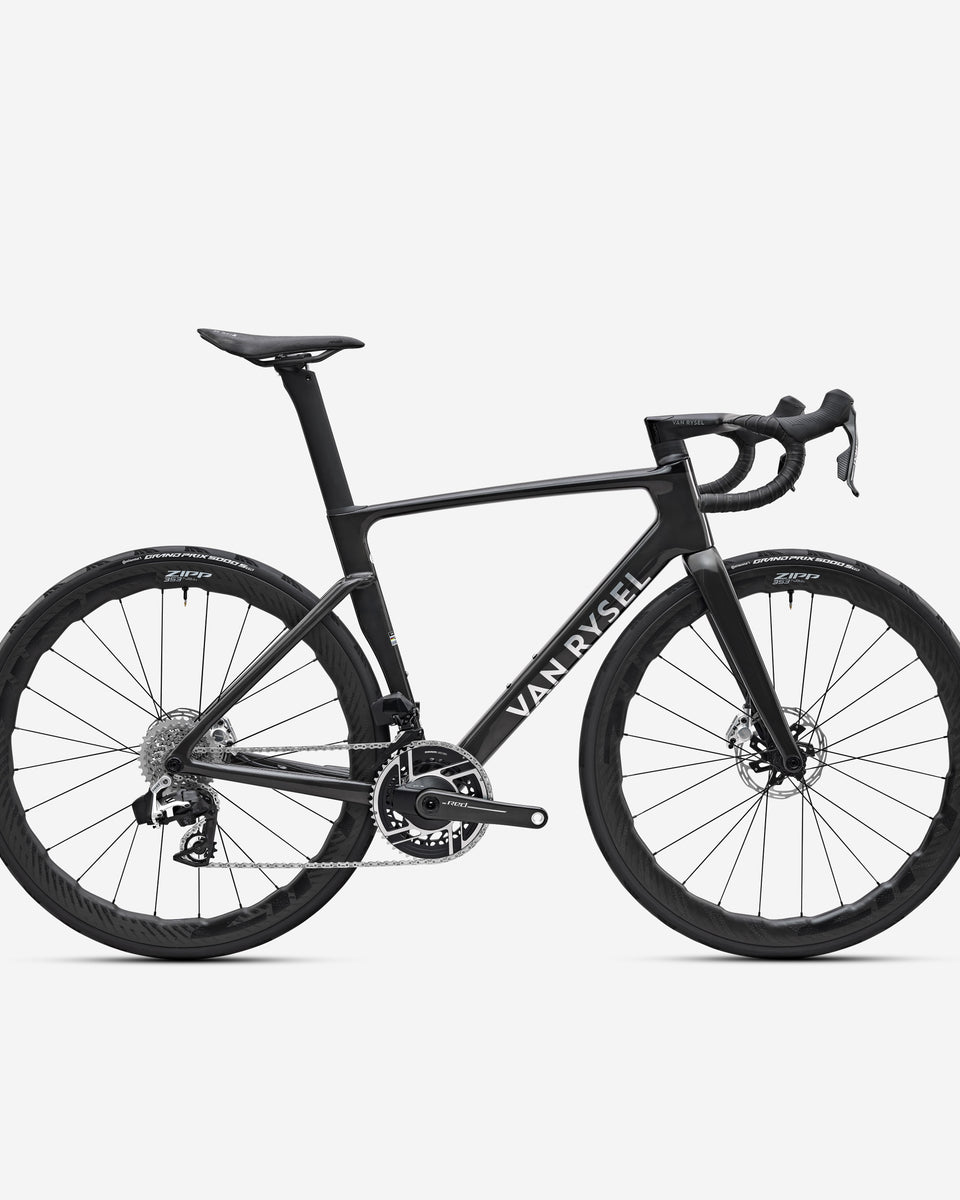

Van Rysel
A road frameset in 5 sizes, from XS to XL.
Frameset price, size M
$5,480
aggressive · neutral handling
From Van Rysel’s own numbers for the M, not marketing copy.
aggressive · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Van Rysel’s chart. Blanks are numbers Van Rysel doesn’t publish; we don’t fill them in.
| Measurement | |||||
|---|---|---|---|---|---|
| Stack (mm) | 515 | 531 | 546 | 572 | 596 |
| Reach (mm) | 382.5 | 385.7 | 388.2 | 395.5 | 408.4 |
| Stack / Reach | 1.35 | 1.38 | 1.41 | 1.45 | 1.46 |
| Head tube angle (°) | 72 | 73 | 73 | 73 | 73 |
| Seat tube angle (effective) (°) | 74 | 74 | 73.5 | 73.5 | 73.5 |
| Top tube (effective) (mm) | 536.4 | 544.4 | 556.4 | 571.4 | 591.4 |
| Chainstay (mm) | 410 | 410 | 410 | 410 | 410 |
| Wheelbase (mm) | 978.2 | 979.1 | 986 | 1001.5 | 1021.7 |
| Trail (mm) | Not published | Not published | Not published | Not published | Not published |
| Standover (mm) | Not published | Not published | Not published | Not published | Not published |
Van Rysel’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| XS | 1350 | $5,480 |
| S | 1350 | $5,480 |
| M | 1350 | $5,480 |
| L | 1350 | $5,480 |
| XL | 1350 | $5,480 |
Van Rysel hasn’t published frame bolt torques we can point to yet
