Winspace

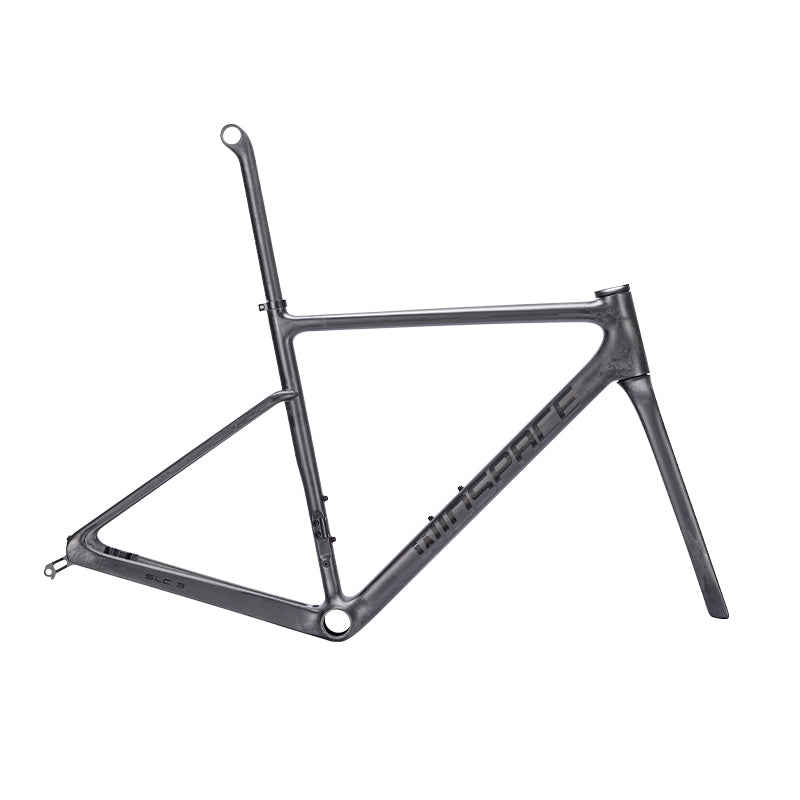

A road frameset in 5 sizes, from XS to XL.
Frameset price, size M
$2,439
aggressive · neutral handling
From Winspace’s own numbers for the M, not marketing copy.
aggressive · neutral handling
From your saved height and inseam, not a height range.
Every size, straight from Winspace’s chart. Blanks are numbers Winspace doesn’t publish; we don’t fill them in.
| Measurement | |||||
|---|---|---|---|---|---|
| Stack (mm) | 509 | 520 | 536 | 556 | 581 |
| Reach (mm) | 366 | 372 | 382 | 389 | 399 |
| Stack / Reach | 1.39 | 1.40 | 1.40 | 1.43 | 1.46 |
| Head tube angle (°) | 70.7 | 71.3 | 72 | 72.3 | 72.6 |
| Seat tube angle (effective) (°) | 74.9 | 74.4 | 74 | 73.5 | 73 |
| Top tube (effective) (mm) | 503 | 517 | 536 | 554 | 576 |
| Chainstay (mm) | 407 | 407 | 407 | 407 | 407 |
| Wheelbase (mm) | 971 | 976 | 980 | 991 | 1006 |
| Trail (mm) | Not published | Not published | Not published | Not published | Not published |
| Standover (mm) | 725 | 741 | 759 | 784 | 805 |
Winspace’s geometry chart, read Jul 21, 2026.
| Size | Frameset weight(g) | Price(CAD) |
|---|---|---|
| XS | 1190 | $2,439 |
| S | 1190 | $2,439 |
| M | 1190 | $2,439 |
| L | 1190 | $2,439 |
| XL | 1190 | $2,439 |
Winspace hasn’t published frame bolt torques we can point to yet
